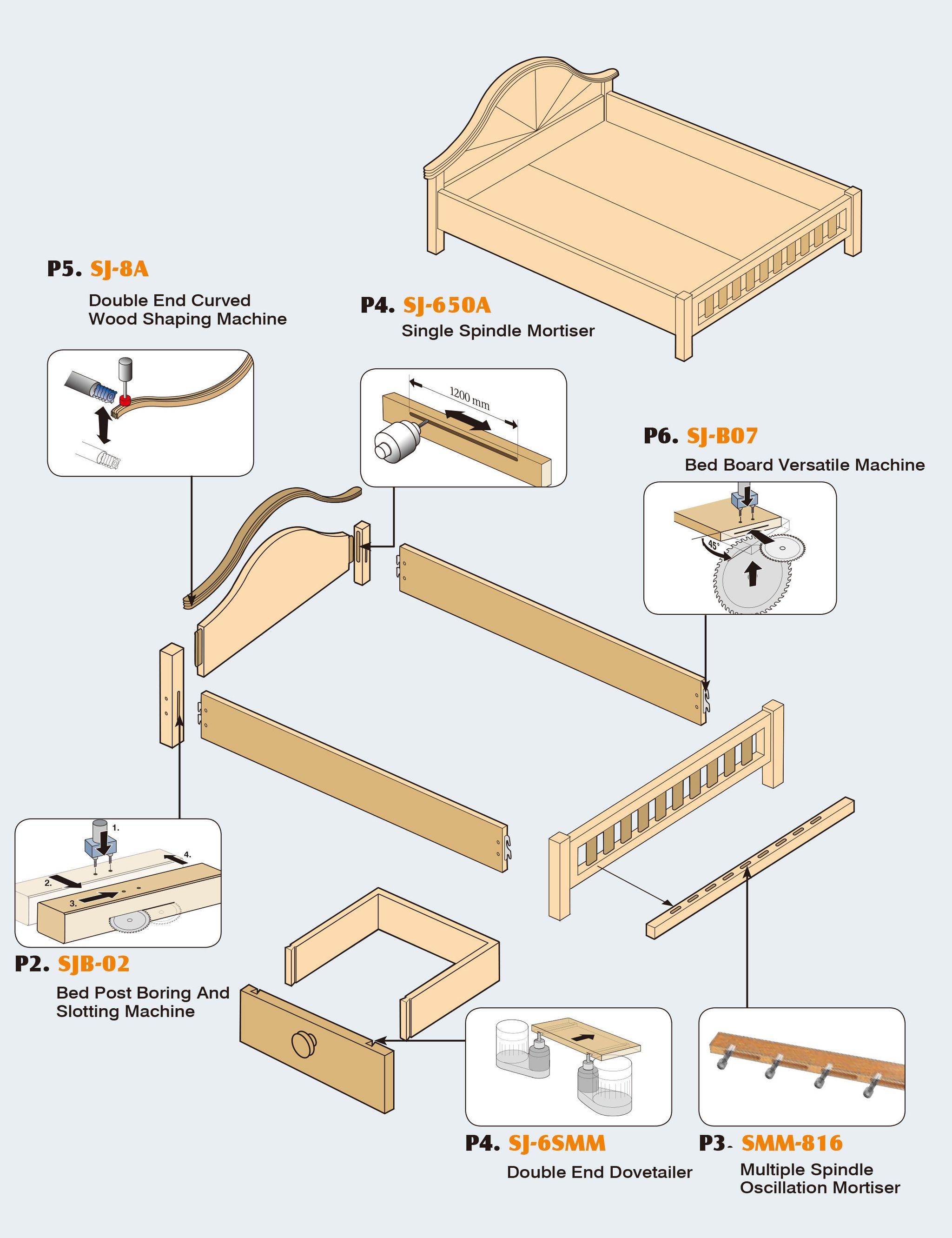

Bed Machining Equipment

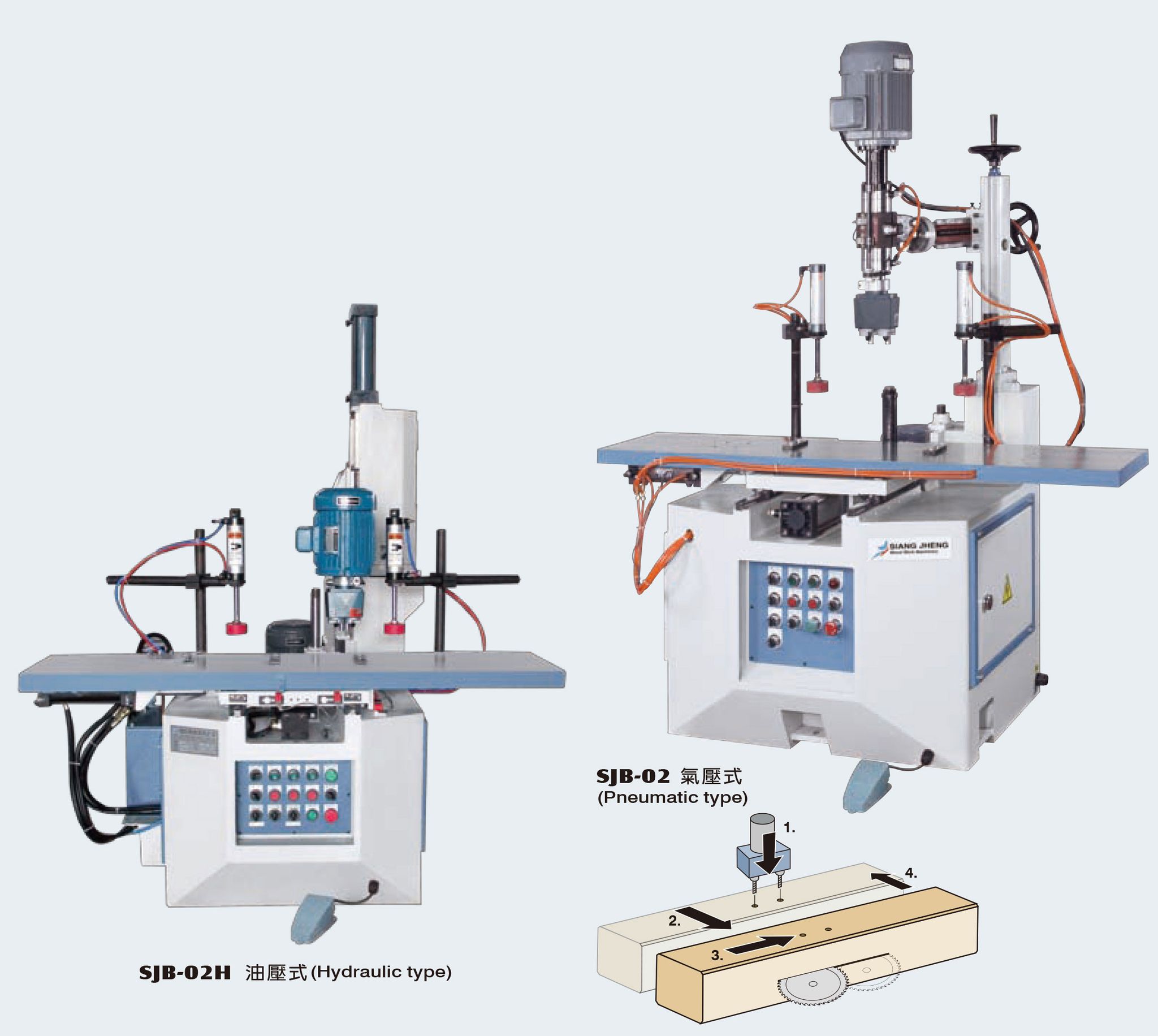

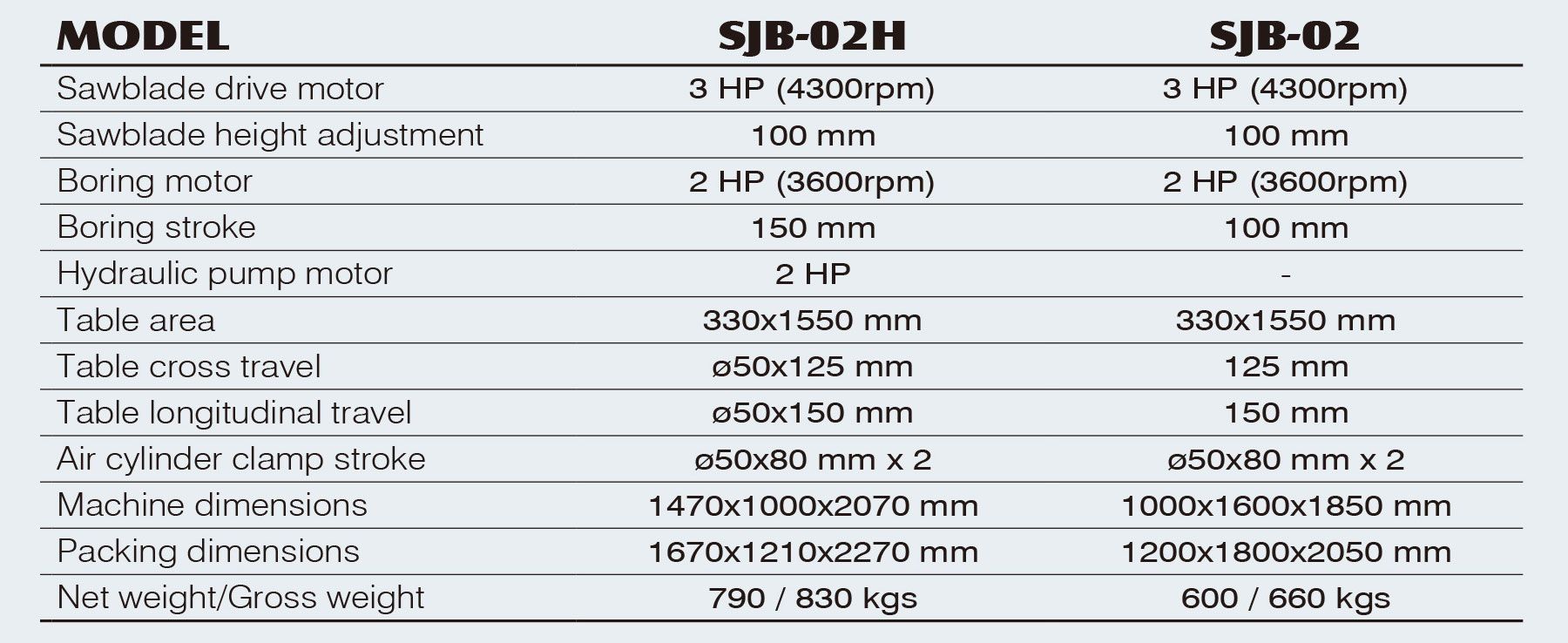

SJB-02

Bed Post Boring And Slotting Machine
Combine two functions in one.
Boring and slotting are accomplished at a time.

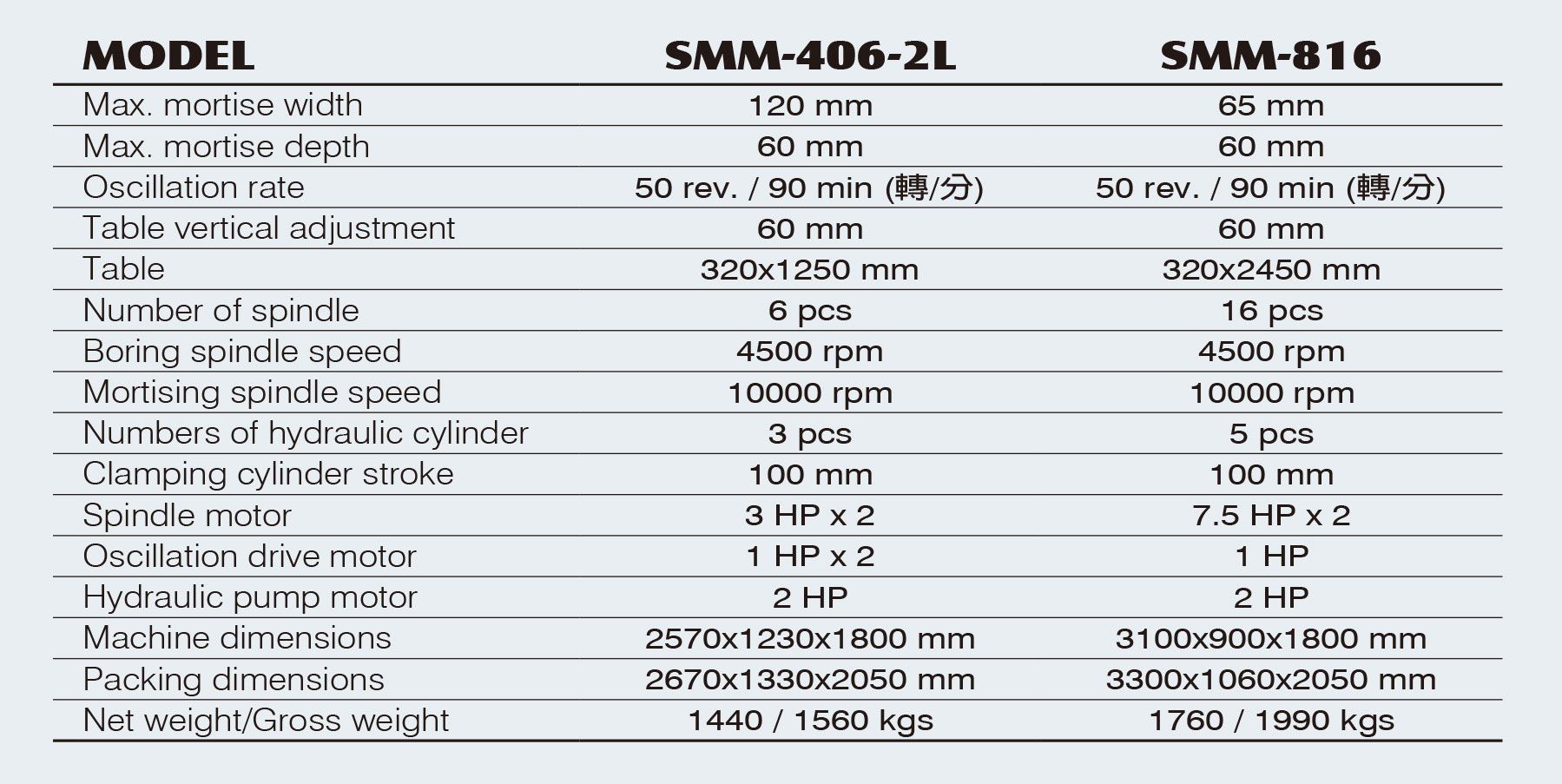

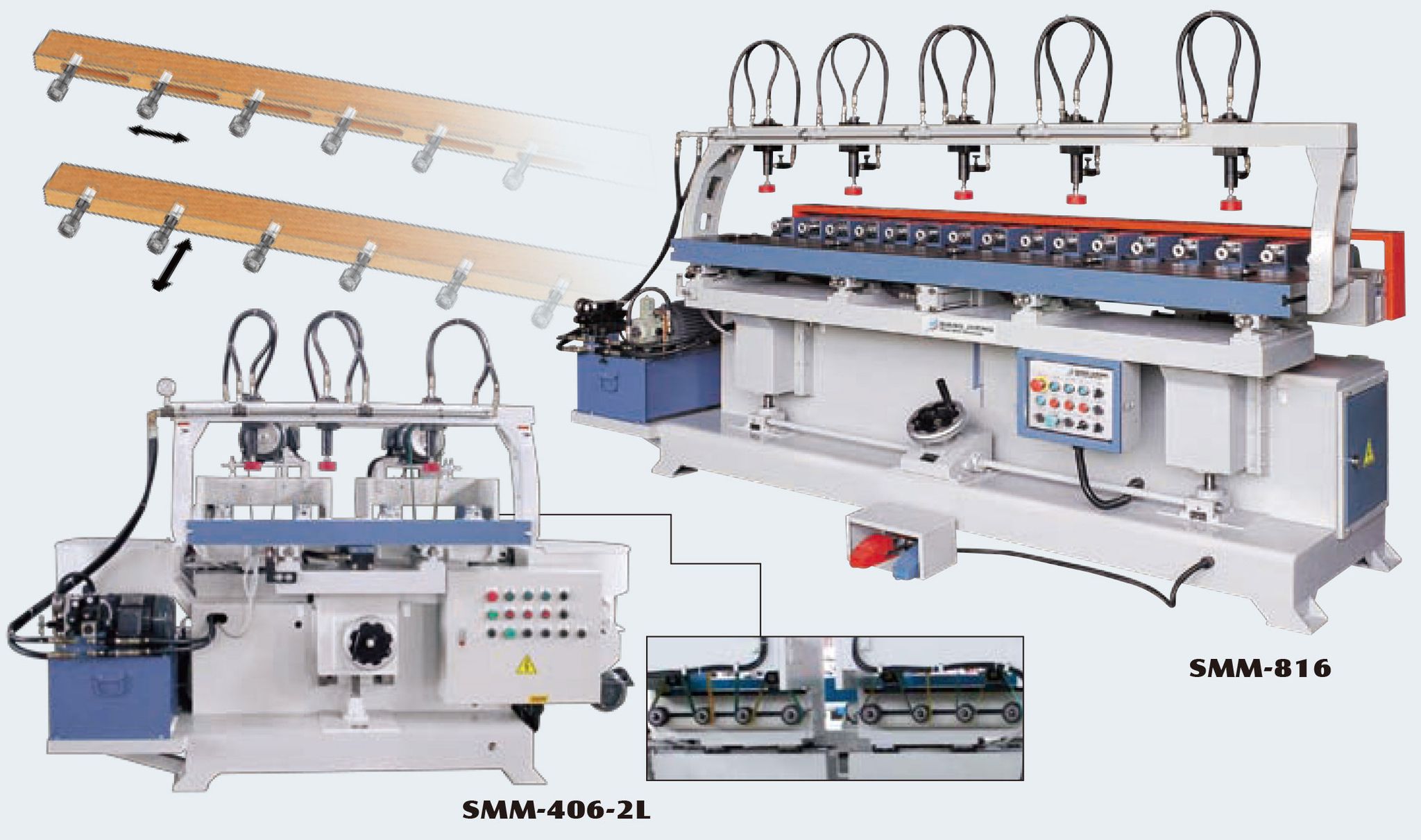

SMM-816

Multiple Spindle Oscillation Mortiser
Combine Multiple Functions in One(Boring and Mortising)
  • 16 spindle configuration.
  • Maximum mortise width 65 mm.
  •  Foot switch control provides automatic operation and greatly upgrades productivity and safety.
  • Specially designed hydraulic system assures high stability and accuracy for mortising operation.

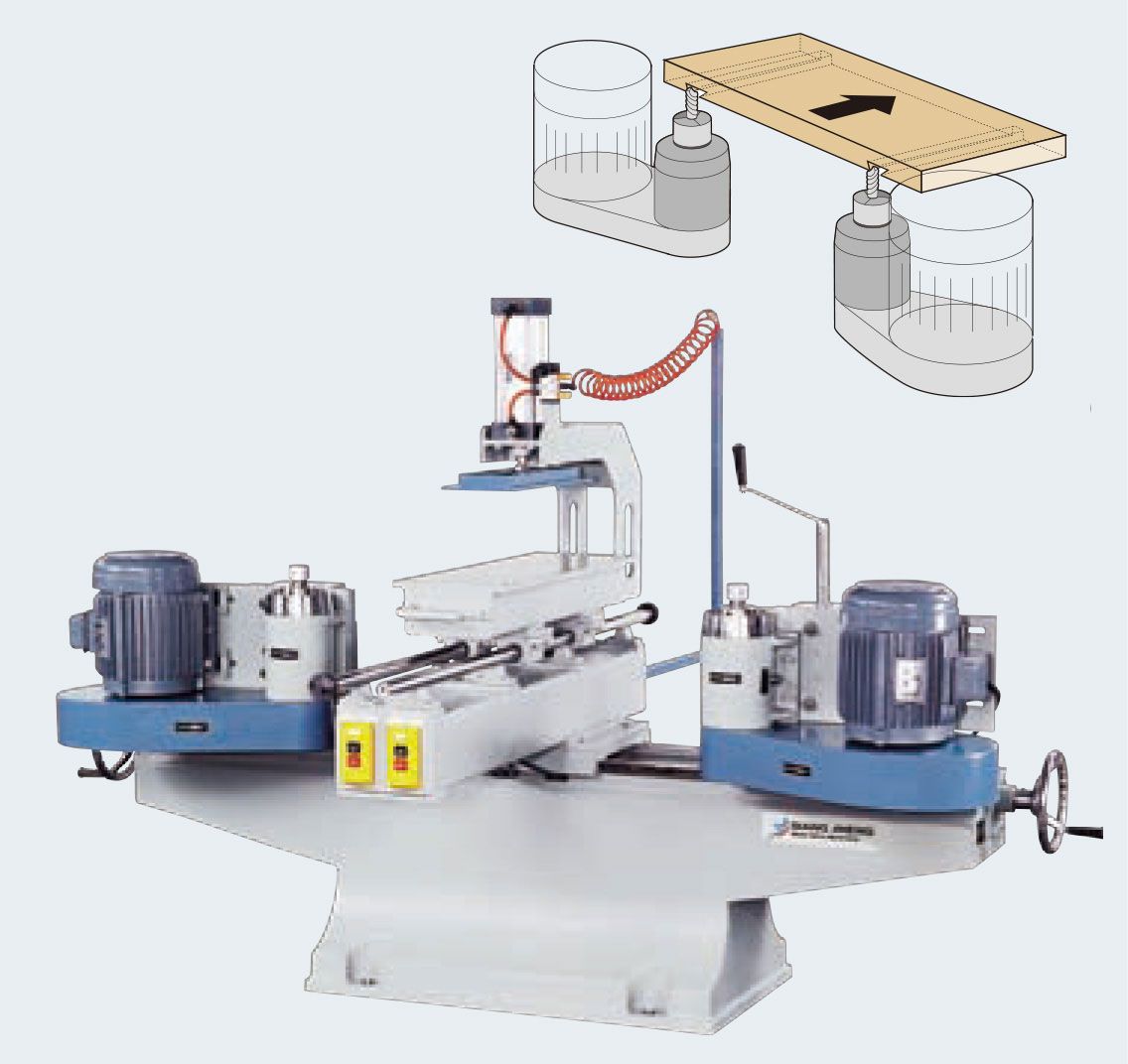

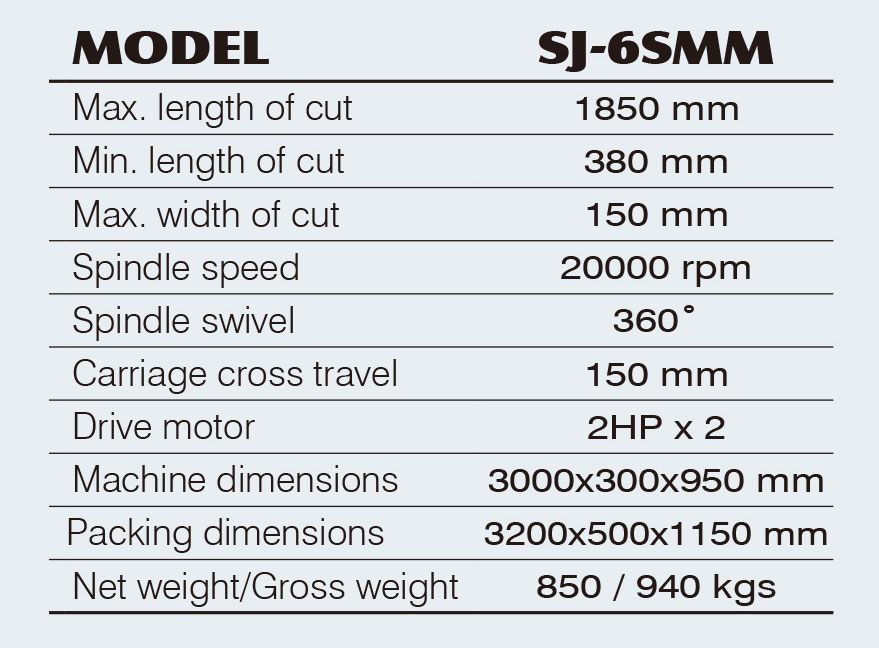

SJ-6SMM

Double End Dovetailer
Designed for dovetailing on front board of drawer.
  • Two cutters cut dovetails simultaneously, assuring high parallelism accuracy between two dovetails.
  • The clamping unit is equipped with two rod guides for high straightness accuracy of workpiece feeding.
  • Workpiece is clamped by air cylinder.
  • The right and left cutter unit position may be adjusted independently.

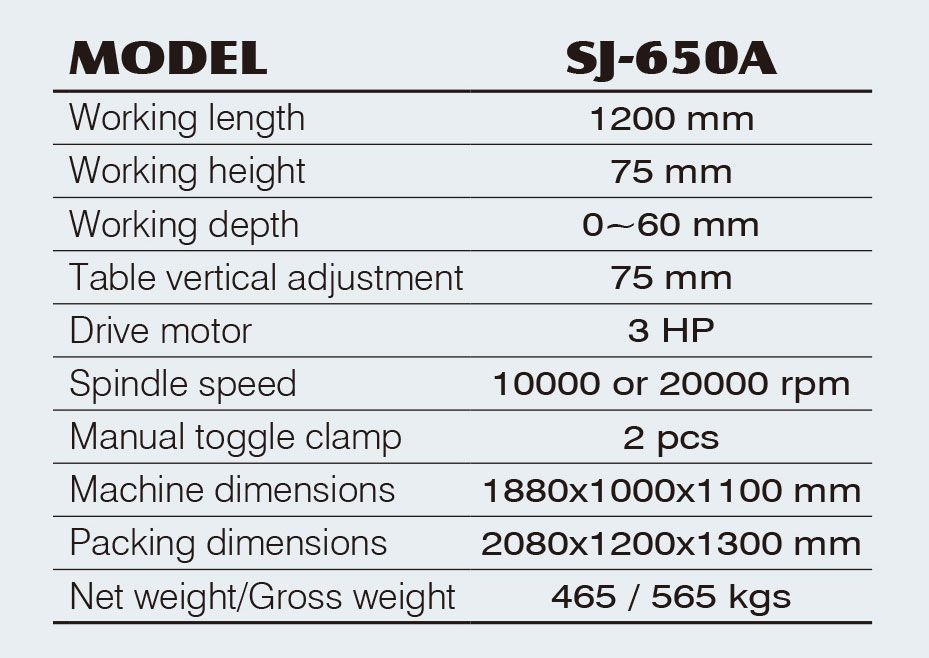

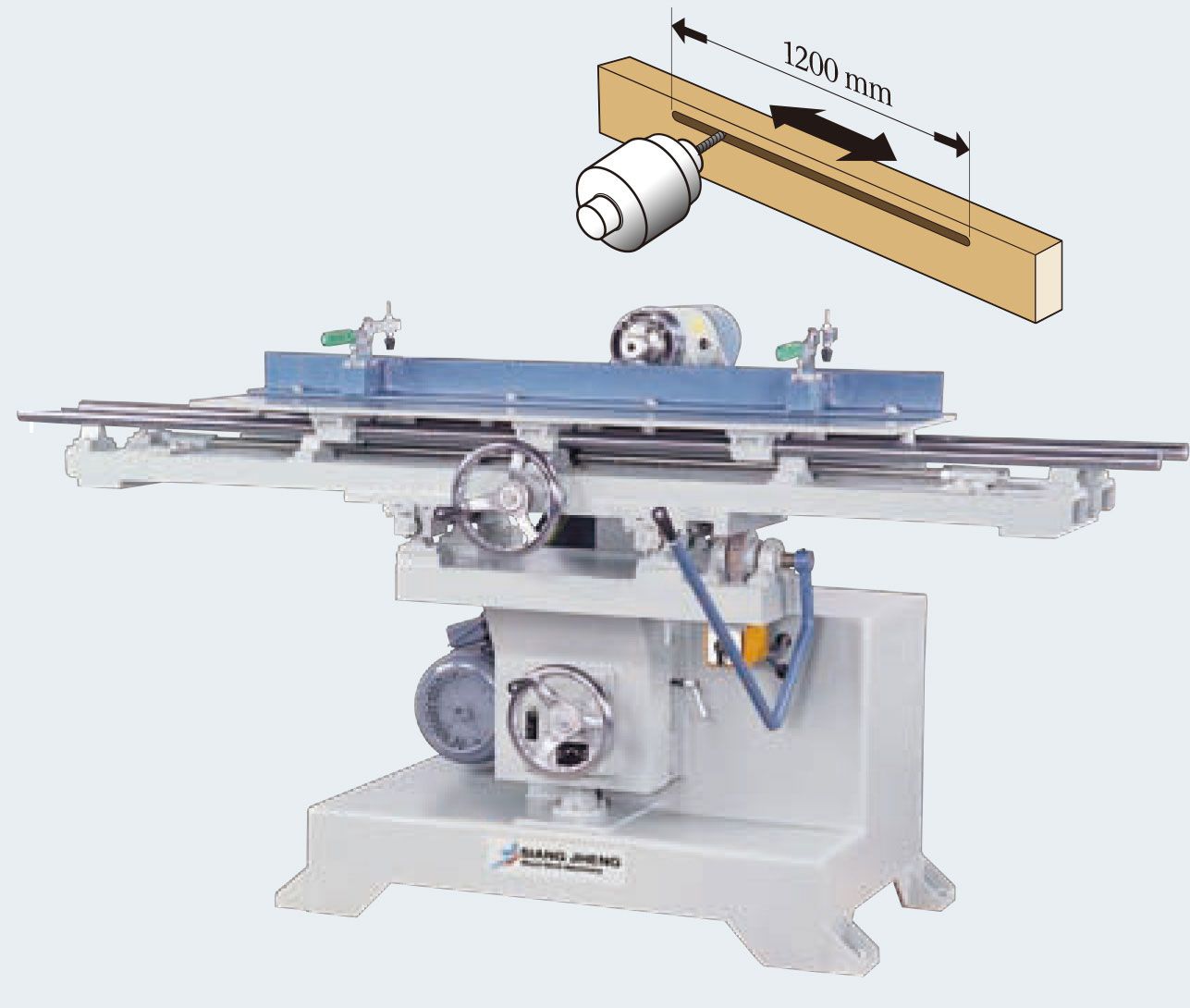

SJ-650A

Single Spindle Mortiser
Ideal for mortising bed post.
  • A manual operation model.
  • Mortising position can be adjusted in up/down, right/left direction.
  • Employ toggle clamps for clamping workpiece.
  • Precision rod guides are equipped on the corss and longitudinal slideways, providing

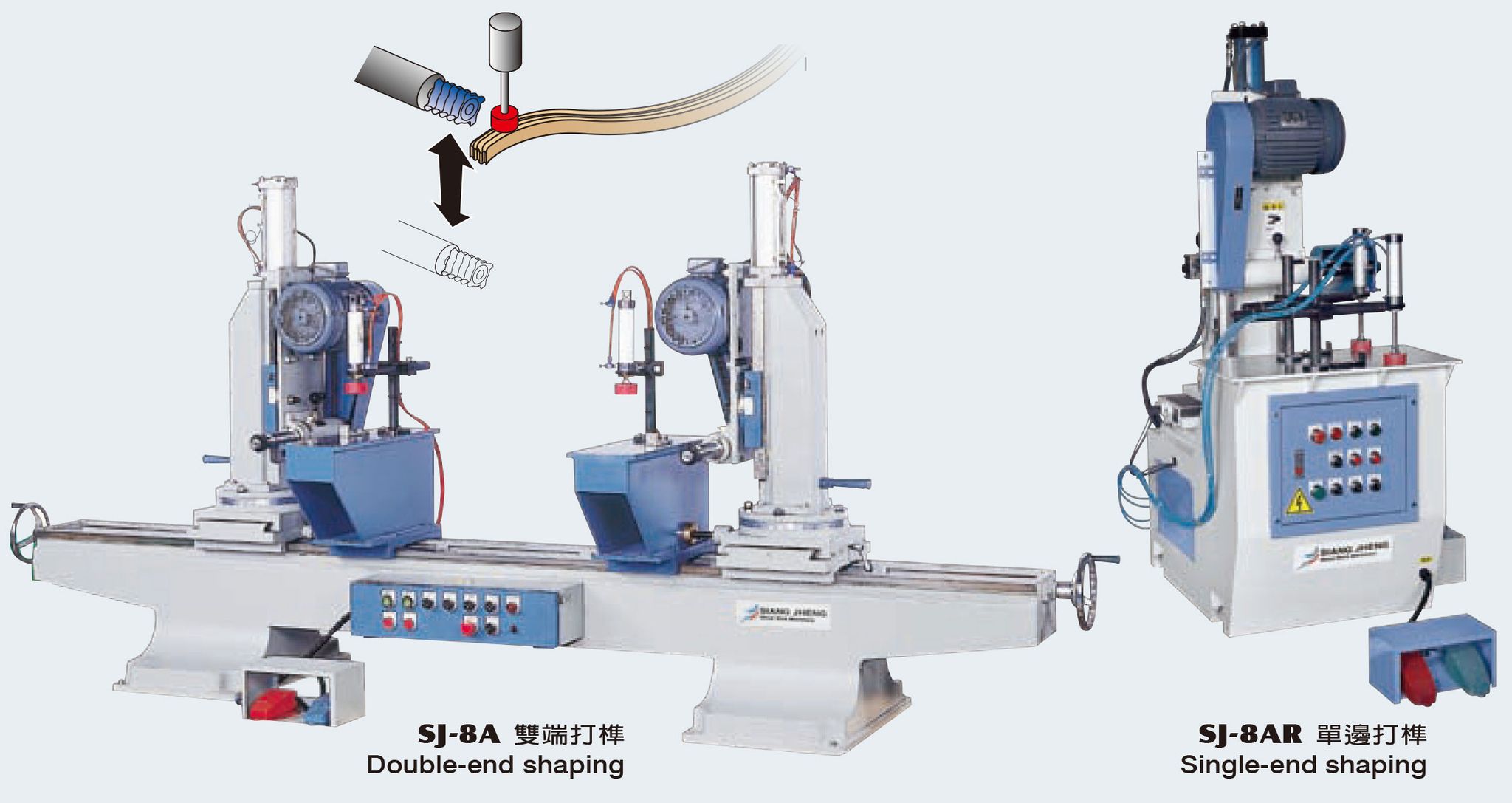

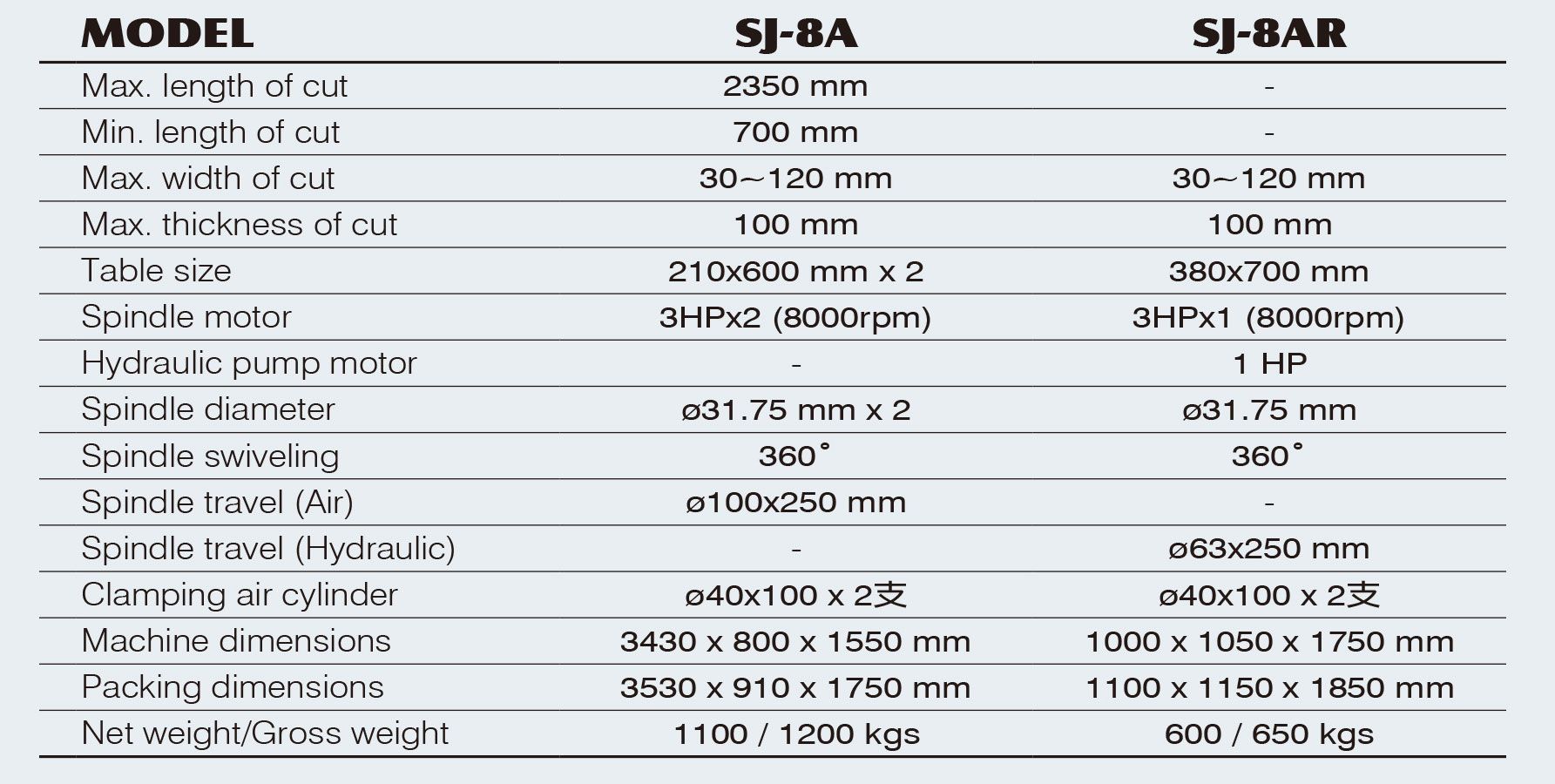

SJ-8A　SJ-8AR

Curved Wood Shaping Machine
Specially designed for double end shaping on bed decoration strip
  • Cutter vertical feed drive. SJ-8A: Drive by air cylinder. SJ-8AR: Drive by hydraulic power.
  • Foot switch control provides automatic operation and greatly upgrades productivity and safety.
  • Shaping unit and clamping unit are adjusted sjnchronizely.
  • Clamping unit position may be micrometrically adjusted.

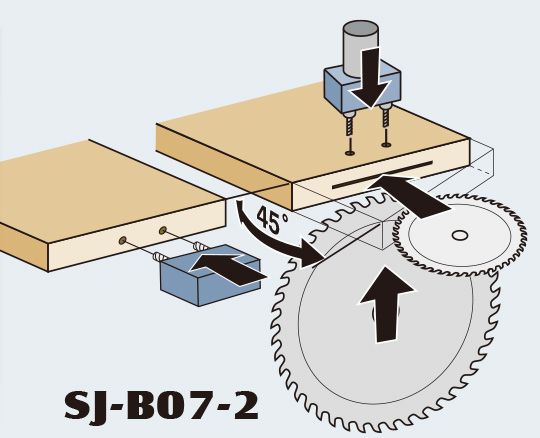

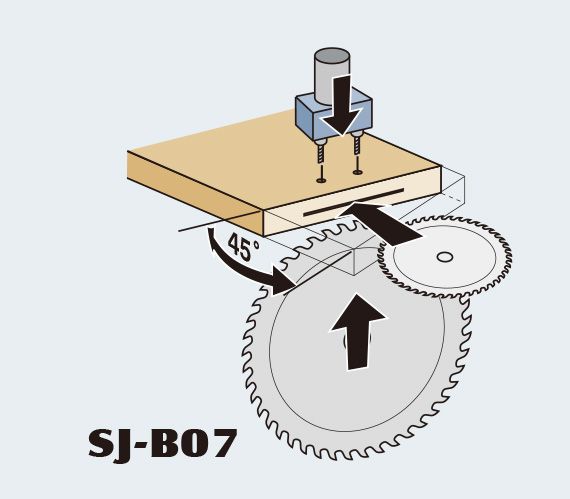

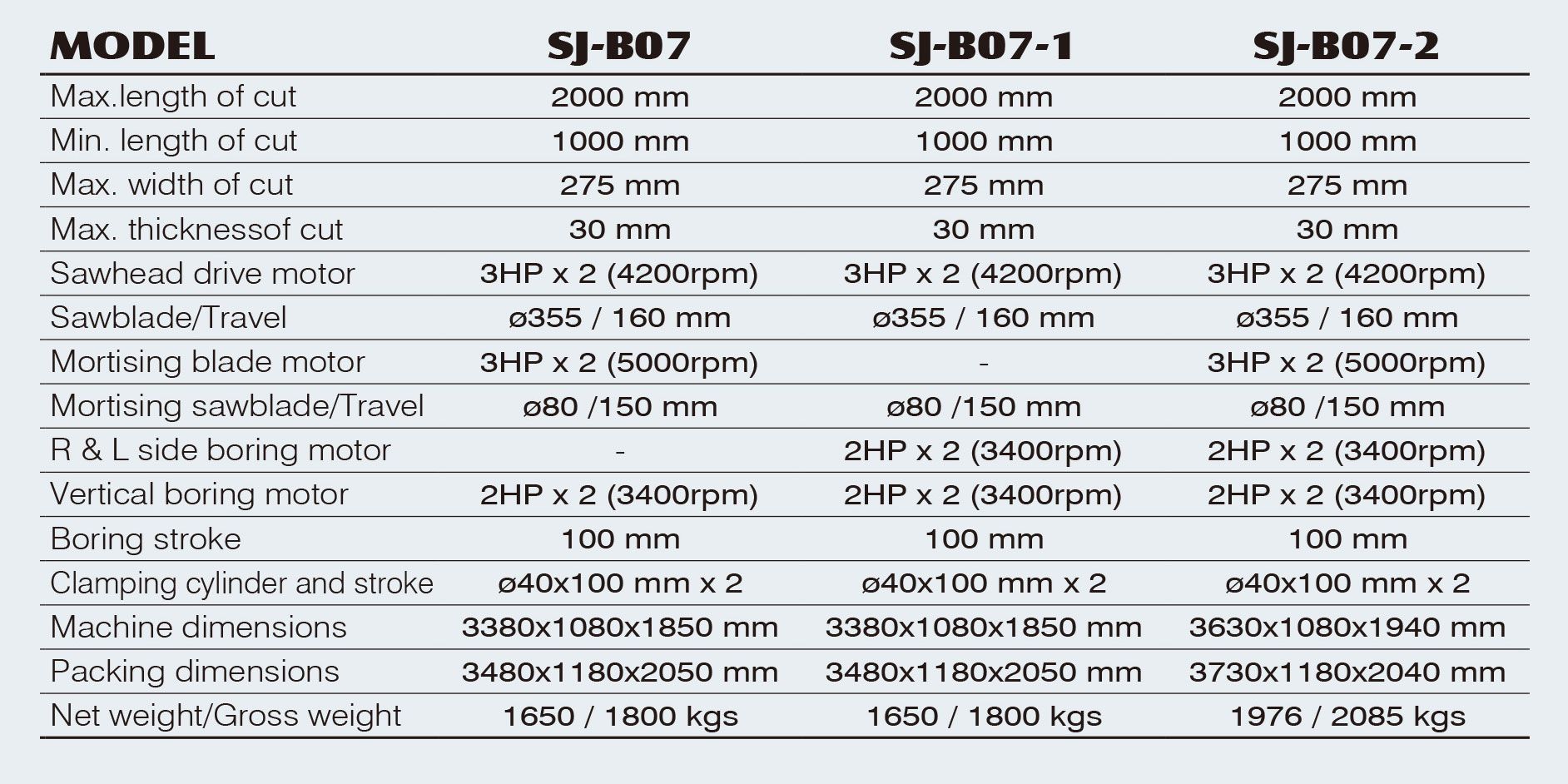

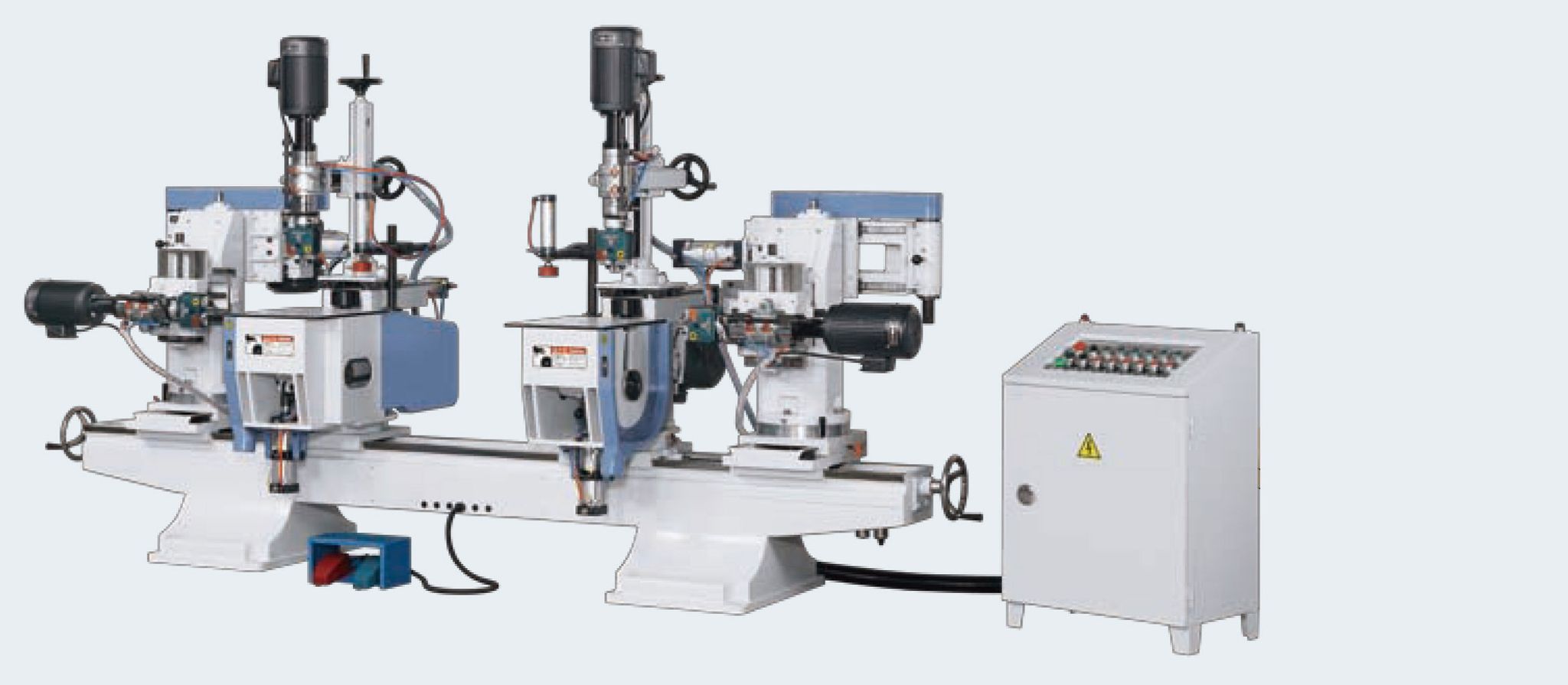

SJ-B07

Bed Side Board Versatile Machine
Specially designed for boring, cutting and slotting for bed side board.
Combine multiple functions in one machine featuring extra high efficiency!
  • Foot switch control provides automatic operation and greatly upgrades productivity and safety.
  • Boring unit can be swivelled for angular positioning.
  • Boring unit and sawblade cutting unit positions are adjusted synchronously.
  • Slotting sawblade unit and boring unit are equipped with linear motion guides, providing stable and accurate movement.
  • The machine motions are operated by air power. The control system employs PLC.
