SMM-406-612-816

Multiple Spindle

Oscillation Mortiser.

Machine Specifications

加工高度: 4尺6軸

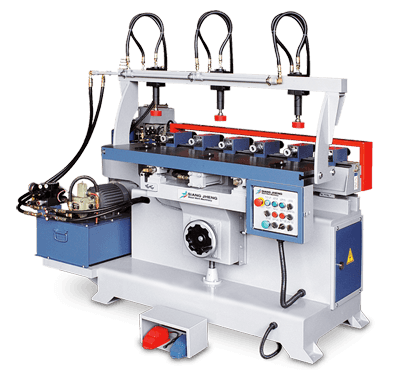

機 型SMM-406
Max. mortise width65 mm (120mm OP)
Max. mortise depth60 mm
Oscillation rate50/90 rev./min
Table vertical adjustment60 mm
Table320x1250 mm
Number of spindle6 pcs
Spindle speed4500 or 10000 R.P.M.
Numbers of hyfraulic cylinder3 pcs
Clamping cylinder stroke100mm
Spindle motor7.5 HP
Oscillation drive motor1 HP
Hydraulic pump motor2 HP
Machine dimensions1880x900x1400 mm
Packing dimensions1980x1000x1600 mm
Net weight/Gross weight930/1030 kgs



 加工高度: 6尺12軸

機 型SMM-612
Max. mortise width65 mm (120mm OP)
Max. mortise depth60 mm
Oscillation rate50/90 rev./min
Table vertical adjustment60 mm
Table320x1850 mm
Number of spindle12 pcs
Spindle speed4500 or 10000 R.P.M.
Numbers of hyfraulic cylinder4 pcs
Clamping cylinder stroke100 mm
Spindle motor7.5 HP x 2
Oscillation drive motor1 HP
Hydraulic pump motor2 HP
Machine dimensions2490x900x1400 mm
Packing dimensions2600x1000x1600 mm
Net weight/Gross weight1200/1280 kgs

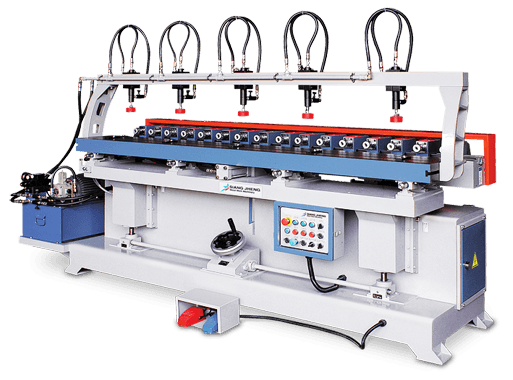

 加工高度: 8尺16軸

機 型SMM-816
Max. mortise width

65 mm (120mm OP)

Max. mortise depth60 mm
Oscillation rate50/90 (rev./min)
Table vertical adjustment60 mm
Table320x2450 mm
Number of spindle16 pcs
Spindle speed4500 or 10000 R.P.M.
Numbers of hyfraulic cylinder5 pcs
Clamping cylinder stroke100 mm
Spindle motor7.5 HP x 2
Oscillation drive motor1 HP
Hydraulic pump motor2 HP
Machine dimensions3100x900x1400 mm
Packing dimensions3200x1000x1600 mm
Net weight/Gross weight1760/1990 kgs

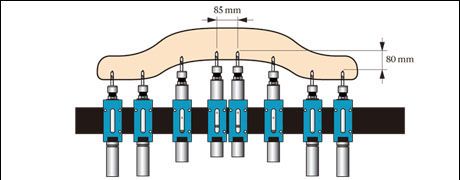

CAPACITY


Standard Accessories


 ‧Maximum hole depth 60mm


‧Mlnimum distance between spindles 70mm


 ‧Maximum mortise width 65mm



Optional Accessories

‧Spindle ectension 80mm

‧Spindle speed 10,000rpm

‧Minimum distance between spindles 85mm





High speed extension spindle (Optional)


‧Minimum distance between spindles 50mm(OP)


‧Maximum mortise width 120mm(OP)

MACHINE FEATURES

Rigid configuration design：

  • special design of table/central panel/base are enforced with many hidden panels; they won't twist or become deformed even after long time heavy-duty working in enduser's fatory.
  • In order to ensure the casting won't rust easily, maintains high rigldity, at enduser's factory, we finish casting with two more courses treatment of annealing and spurting sand before painting the machine.

High low feed speeds

The hydraulic system permits high low speed change to suit various hardness of wood materials, ensuring excellent mortise quality.

Hydraulic system

The specially designed hydraulic system provides maximum stability of function operations and upgrades production quality.

Adjustable Mortise Width

The mortise width adjustment can be read on the scale for accurate adjustment.

Inside structure of table & central panel-Taiwan patent.

Precision Slideways

  • The spindles move on the high precision and dust proof linear guides, ensuring maximum straightness accuracy of mortises.
  • Ball linear guideways.
  • Four guide blocks on guideways.
  • THK brand which is made in Japan.

Rod Guideways

  • 8 blocks on 4 guideways
  • Steel rod is finished with hard charome.
  • Smooth &accurate function.
